Description

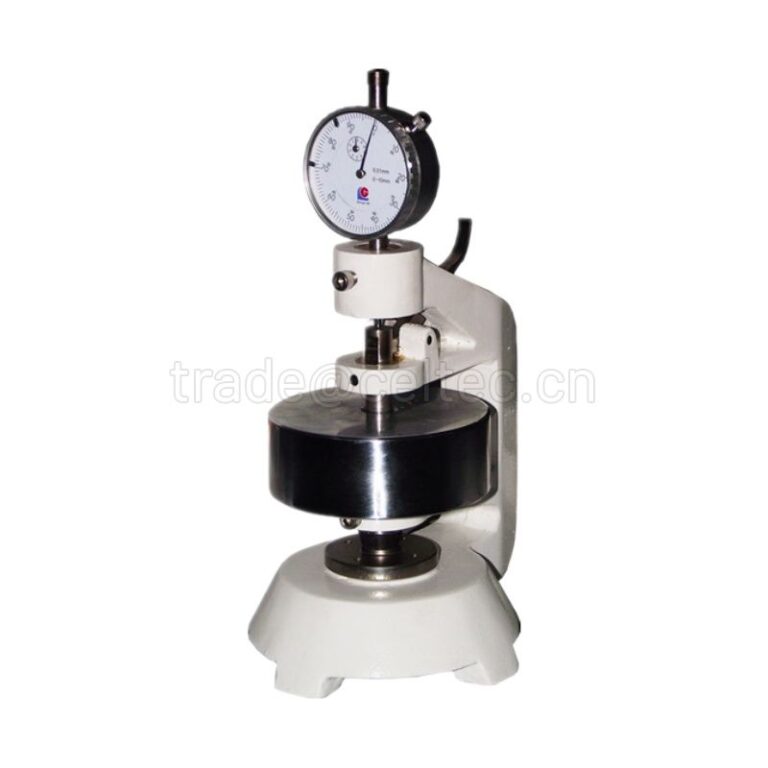

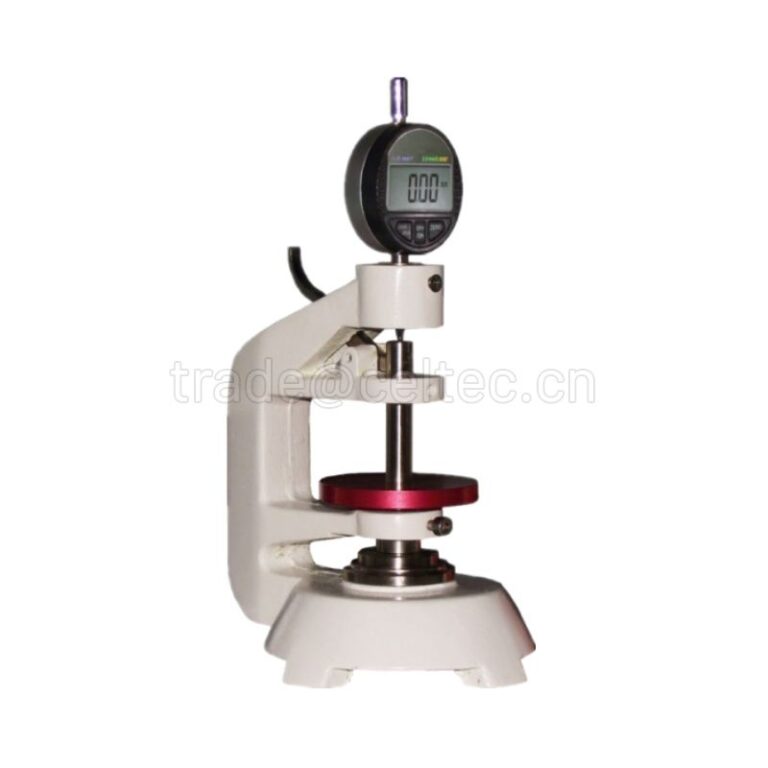

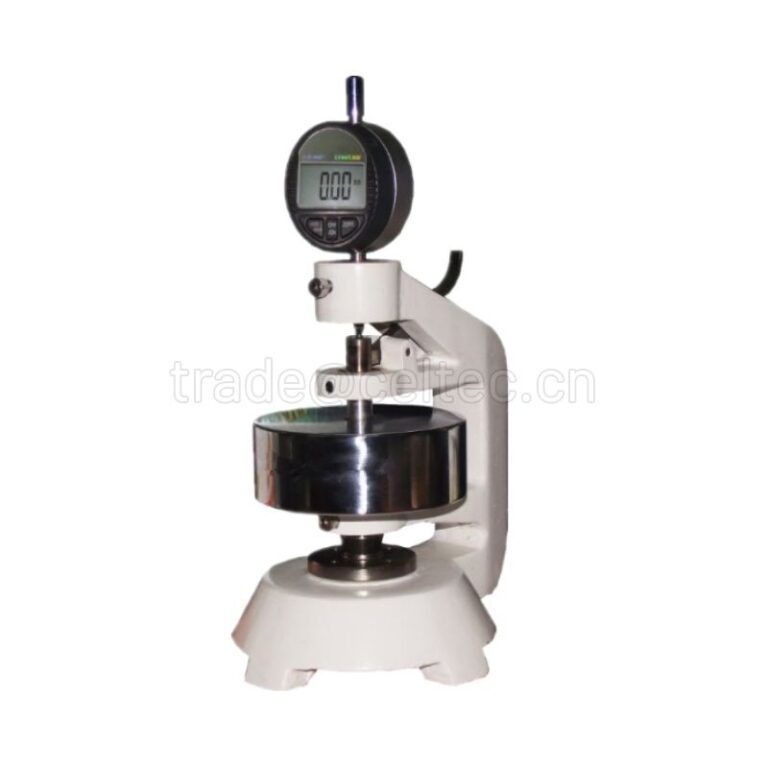

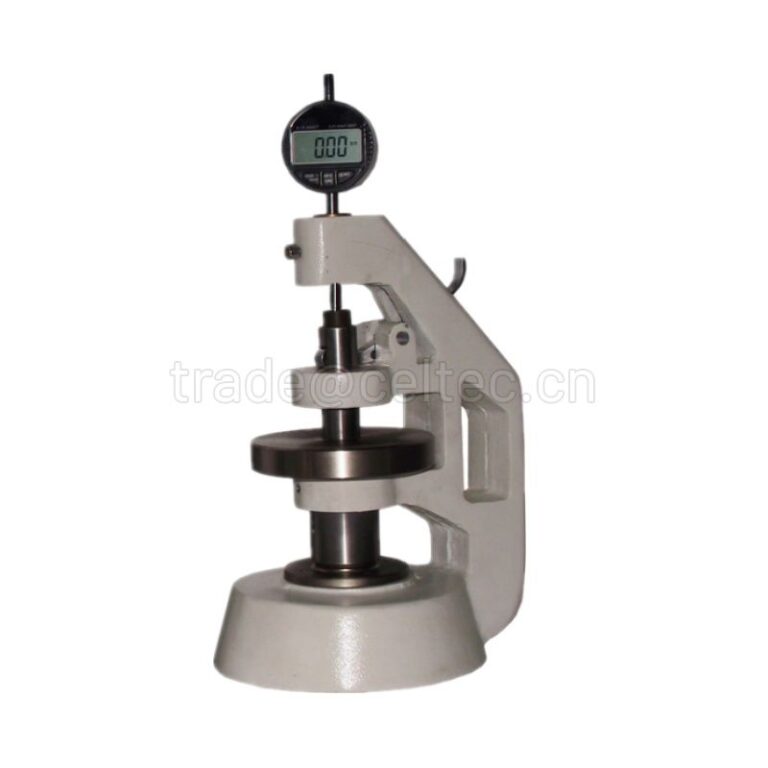

ZBH-01 Paper and Board Thickness Tester|、Plasztikavizsgálat, incorporating two plane, parallel, circular pressure faces, between which thepaper or board is placed for measurement.
The pressure exerted between the pressure faces during the thickness measurement shall be (100±10) KPa.
The two pressure faces shall form an integral part of the micrometer, such that one face is fixed (the anvil) and the other is movable in a direction perpendicular to the plane of the fixed face.
One face shall be (16.0±0.5) mm in diameter and the second face shall be of such a size that it is in contact with the whole area of the other face when the micrometer reads zero. Thus, a circular region of a test piece. nominally 200 mm² in area, is subjected during the thickness measurement to the pressure exerted by the faces.
Advantage
Quality assurance
Checking the thickness of a product while it’s being produced ensures that the customer receives the expected quality.
Project selection
Measuring the thickness of construction paper can help you choose the right paper for your project by determining the paper’s strength, flexibility, and durability.
Consistency
Measuring thickness ensures that your paper is consistent in terms of quality and performance.
Production monitoring
Thickness measurement is an important step in production monitoring, quality assurance, and machine control.
Műszaki jellemzők
Reset ZERO at any point
ON/OFF power switch
Measurement units conversion
0.001mm resolution
Műszaki adatok
| Teszt tartomány | 0～4 mm |
| Felbontás | 0.001mm |
| Contact Area | 200±5 mm² |
| Contact Pressure | 100±10kPa |
| Measuring surface parallelism | ≤0.005mm |
| Display error | ±0.05％ |
GYIK
1. What is single sheet thickness?
Single sheet thickness is the distance between one surface of a paper or board and the other, measured under an applied static load.
2. What is bulking thickness?
Bulking thickness is the thickness of a single sheet of paper, calculated from the thickness of several superimposed sheets in a pack, and measured under an applied static load.
If you need any detailed information about the ZBH-01 Paper and Board Thickness Tester, you can kapcsolatfelvétel! Cell Instruments will give you a satisfactory solution.
