LT-01 Lækagetester

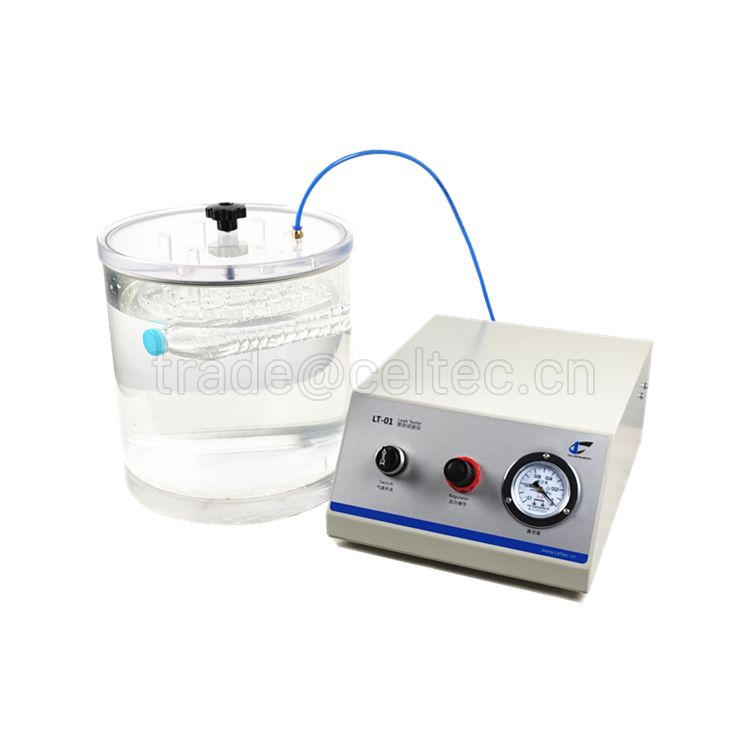

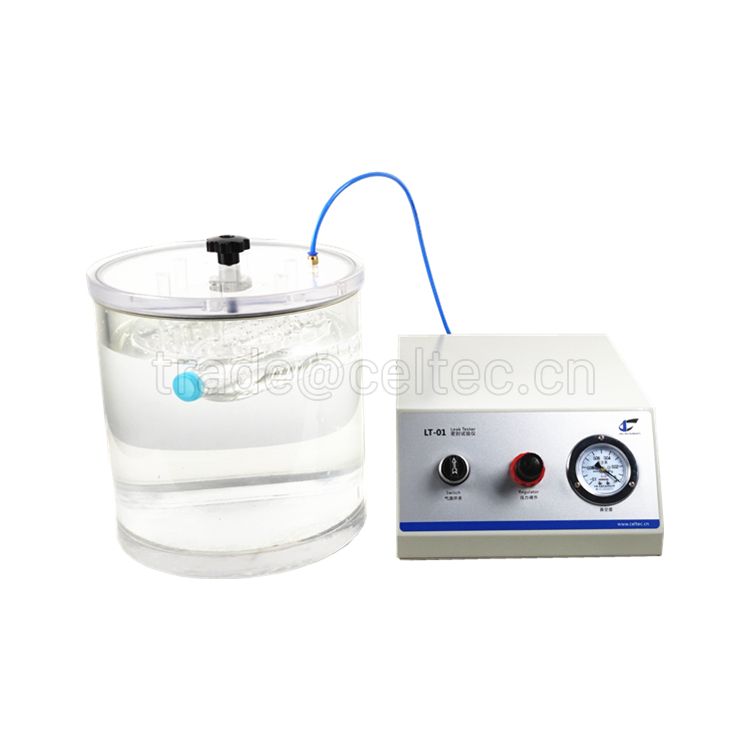

1. Introduction of LT-01 Leak Tester

The LT-01 Leak Tester is a cost-effective vacuum leak tester that is manually operated. It is used to examine the airproof properties of packages, bags, pipes, and containers in various industries, including food, beverage, pharmaceutical, daily chemical, electrical, and electronic.

2. Benefits

1) Venturi tube and compressed air used to generate stable vacuum

2) Requires no electricity

3) High leakage test efficiency

4) Strong and anti-yellowing acrylic chamber

5) Different chamber sizes available

6) No calibration needed

7) No vacuum pump required

8) Easy installation, start-up, and operation

9) Low-cost maintenance

3. Specifications

Models	LT-01
Testområde	0~-90 KPa
Chamber Size	Φ270*H210mm (Standard Inside Usable)
	Φ364*H420mm (Optional)
	Φ464*H330mm (Optional)
	400300300mm LWH (optional)
Chamber Material	Acrylic
Control	Manual
Display	Analog
Kraft	N/A
Compressed Air	0.7MPa (Prepared by user)
Working Temperature	Room Temperature

4. Standards

ASTM D3078, ASTM D4991（needs modification）

5. Configuration

a) Standard configuration: LT-01 Leak Tester control unit, chamber, air pipe, manual.

b) Optional configuration: Non-Standard Chamber, air compressor .

Any questions about the product, please feel free to kontakt os, Cell Instruments – Leak tester manufacturer will give you a satisfactory solution.

Hvis du vil have flere oplysninger om dette produkt, er du velkommen til at kontakte os. Vi anbefaler andre populære produkter til dig: Container-tester, Leak and Seal Strength Tester solution
