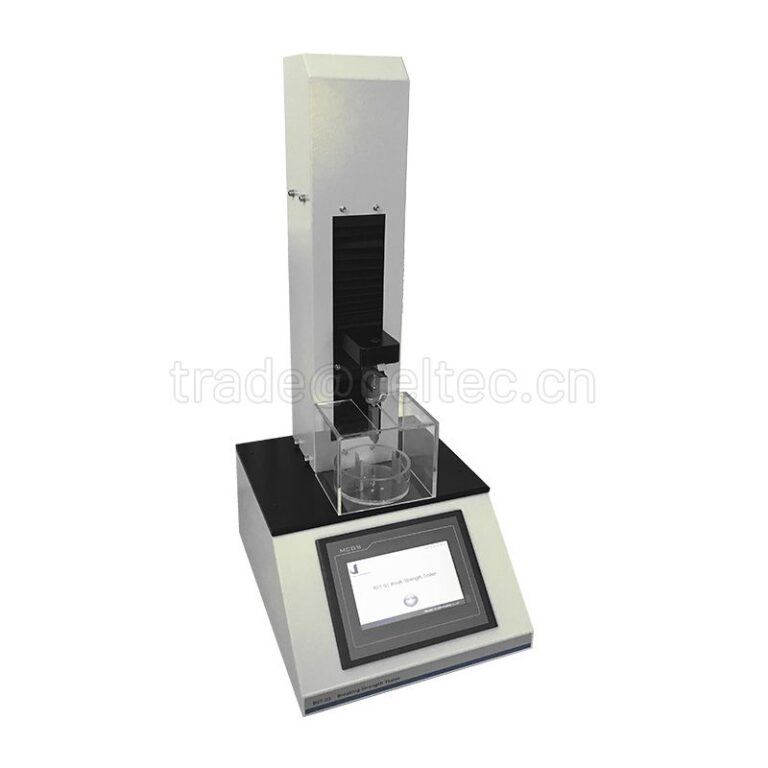

BST-01 Ampoule Breaking Tester

Ampoule Breaking Tester is designed to quantitatively test the breaking strength of ampoules. It is used to measure how much force is required to break the ampoule neck. Our ampoule break tester, designed for ampoule break force testing, accurately measures ampoule break strength. Featuring advanced technology, our ampoule break strength testing machine ensures precise and reliable results for the Test af ampullens brudstyrke.

2.Why do you need an Ampoule Breaking Tester?

Ampoules are commonly used to store pharmaceutical substances. They are sealed hermetically by melting the thin top using an open flame. The neck of the ampoule is usually designed to be snapped off for easy access to the contents. The breaking force of the neck is a critical factor as it affects both the safety of the pharmaceuticals inside and their clinical application.

3.Advantages of Ampoule Break Force Tester

●Versatile Test Fixtures:

Accommodates ampoules of various capacities (1ml, 2ml, 5ml, 10ml, 20ml).

Multiple fixtures for testing diverse materials in medical packaging.

●Control and Automation:

PLC control for automation.

Adjustable test speed for different requirements.

Stepper motor with precision ball-lead screw for accurate speed control.

●Safety Measures:

Limiting device for controlled testing.

Automatic return function for efficiency.

Safety features include an ampoule debris collecting tube and protective cover.

●User Interface and Reporting:

HMI touch screen for user-friendly control.

Dot matrix micro printer for long-term data keeping.

●Connectivity and Software:(optional)

Optional RS 232 connectivity.

Professional software for advanced data analysis.

Ideal for pharmaceutical and packaging industries, our Test af ampullens brudstyrke guarantees the durability and integrity of ampoules. For more detailed information about the Ampoule Breaking Strength Testervenligst kontakt os! CELL will provide you with detailed information

4.Test Principle of Ampoule Breaking Strength Tester

An ampoule sample is place on the fixtures and the pressing head is driven down by the power system at the speed of 10 mm/m. The breaking strength is detected by the high precision load cell when the pressing head touches ampoule neck and breaks it.

5.Application of Ampoule Breaking Strength Tester:

Ampoule breaking strength, lipstick breaking strength, texture analysis, vial breaking test, syringe barrel test, syringe gliding force test

6.Specifications

7.Standards:

ISO 9187, GB 2637, YBB00332002

8.Configuration:

a)Standard configuration: BST-01 Ampoule Breaking Tester, protective cover, pressing head, sample holder, fuses, manual, calibration certificate, power cord.

b)Optional configuration: Non-Standard jigs, RS 232 Port, COM Line, Software, air compressor

9.FAQs

1. What is the primary function of the BST-01 Ampoule Breaking Strength Tester?

– The BST-01 Ampoule Breaking Strength Tester is designed to quantitatively measure the breaking strength of ampoules, specifically assessing the force required to break the ampoule neck.

2. How does the test process of the BST-01 Ampoule Breaking Strength Tester work?

– The ampoule sample is placed on the fixtures, and the pressing head is driven down by the power system at a speed of 10 mm/m. The breaking strength is detected by a high precision load cell when the pressing head touches and breaks the ampoule neck.

3. What technical features make the BST-01 Ampoule Breaking Strength Tester versatile and advanced?

– Technical features include constant rate of displacement, industrial-level stability, PLC control, stepper motor precision, and safety measures. These features contribute to its applicability beyond ampoule breaking strength, enabling testing for compression, cap opening, syringe gliding force, puncture, stopper penetration, etc.

4. How does the BST-01 prioritize safety during the testing process?

– The Ampoule Breaking Strength Tester prioritizes safety through features like a collecting tube for broken samples, ensuring containment and preventing contamination. Additionally, a protective cover is provided for samples that may jump during testing, enhancing overall safety in the testing environment.
