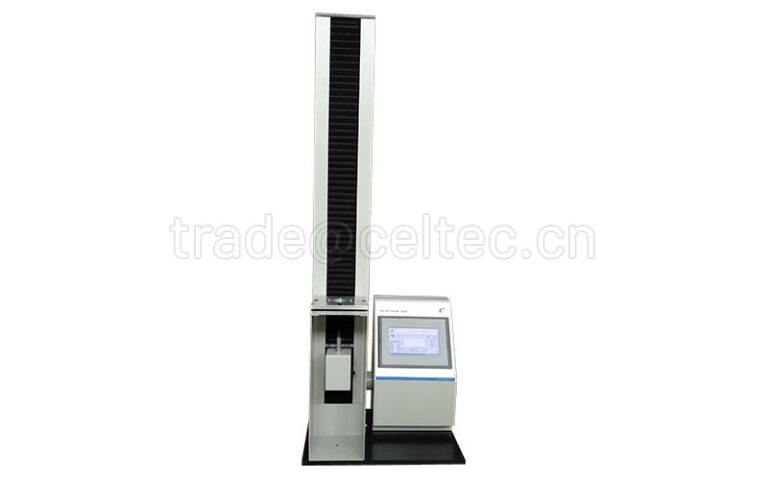

1.Introduction of TST-01 Tensile Testeur|、Plastics Testing
TST-01 tensile testers are suitable for conducting a variety of tests, including tensile strength, peel, elongation rate, tear, Scellage à chaud, adhesive, puncture, Opening Force, low-speed unwrapping force, and pullout force tests. These tests cover a wide range of materials such as plastic films, compound materials, flexible packaging materials, flexible tubes, adhesives, adhesive tapes, pressure-sensitive adhesives, medical plasters, release paper, protective film, combined caps, metal foils, diaphragms, back panels, non-woven fabrics, rubber, paper, and fiber products.
Notre machine d'essai de traction est conçu pour comprehensive tensile testing, providing accurate tensile strength tests for various materials. Equipped with advanced tensile testing equipment, our tensile tester machine ensures reliable test results. Following ASTM tensile test standards, our tensile test apparatus evaluates tensile strength using standardized tensile test specimens and test specimens for tensile testing.
2.Advantages of TST-01 Tensile Tester
Le TST-01 Testeur de traction boasts several advantages that make it an indispensable tool for quality control and material assessment:
Precision Control: PLC control ensures industrial-level stability, and the HMI touch screen guarantees user-friendly operation.
Accurate Result: The precision ball lead screw mechanism provides consistent and accurate speed and displacement control, ensuring reliable and repeatable test results.
Versatility: The TST-01 is compatible with various fixtures, allowing it to assess a wide range of material properties.
Program Flexibility: Specially designed programs cover tests such as break, tension, elongation, Résistance du joint, 90° peeling, and 180° peeling.
Caractéristiques de sécurité : Equipped with a limiting device and automatic returning function, ensuring safety, and preventing damage.
Data Output Options: The inclusion of a 7-inch TFT touch screen, micro printer (optional), and RS232 port for data communication provides flexibility in data output.
3.Why do you need TST-01 Tensile Tester
If your industry demands precise and comprehensive material testing, the TST-01 Testeur de traction is a must-have. Whether you are in any industries, this tester offers a reliable and efficient solution for assessing the mechanical properties of a wide array of materials.
4.What is the purpose of the TST-01 Tensile Tester?
Le TST-01 Testeur de traction serves the primary purpose of evaluating various material properties, including but not limited to:
– Tensile Strength
– Peeling Strength
– Deformation Behavior
– Tear Resistance
- thermoscellage Efficiency
– Adhesion Strength
– Puncture Resistance
– Opening Force
5.Application of Desktop Tensile Tester
Le TST-01 Testeur de traction finds applications in various industries and research facilities, catering to the testing needs of materials like plastic films, composite materials, soft packaging materials, plastic flexible tubes, adhesives, adhesive tapes, label stickers, medical plasters, release paper, protective films, composite caps, aluminum foil, diaphragms, back sheets, non-woven fabrics, rubber, and paper. Its applications encompass measuring tensile, peeling, deformation, tearing, heat sealing, adhesion, puncture force, opening force, and other performance characteristics across these materials.
6.Specifications of Desktop Tensile Tester
| Plage de test | 0-500N (or 50N, 100N, 200N, etc.) |
| Accident vasculaire cérébral | 800mm (customizable) |
| Vitesse d'essai | 1~500mm/min |
| Précision du déplacement | 0,01 mm |
| Précision | 0.5% Full Scale |
| Largeur de l'échantillon | 27mm (optional width available) |
| Contrôle | PLC and HMI Screen |
| Sortie de données | Micro printer (optional), RS232 (optional) |
7.Standards of Tensile Tester
ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904, ASTM F88, ASTM D1938, JIS P8113
8.Configuration of Tensile Tester
a)Standard configuration: TST-01 Tensile Tester, flat sample clamps, fuses, manual, calibration certificate, power cord.
b)Optional configuration: Custom fixture, embedded or independent micro printer, RS 232 Port, COM Line, Software.
9.Deliveries of TST-01 Tensile Tester
10.FAQ
Q: What industries can benefit from the TST-01 Tensile Tester?
A: The TST-01 Tensile Tester is versatile and caters to the testing needs of industries such as plastics, paper, textile, food, pharmaceuticals, toiletries, printing, adhesives, and more.
Q: Can the TST-01 Tensile Tester accommodate different sample widths?
A: Yes, the TST-01 Tensile Tester offers flexibility with an optional sample width, ensuring compatibility with various testing requirements.
Q: Are there safety features in place to prevent damage during testing?
A: Absolutely, the TST-01 Tensile Tester is equipped with a limiting device and automatic returning function, prioritizing safety, and preventing any potential damage.
Q: How does the TST-01 Tensile Tester ensure accuracy in testing?
A: The precision ball lead screw mechanism ensures consistent and accurate speed and displacement control, contributing to the reliability of test results.
For specific applications, such as thin film tensile tests, our equipment adheres to ASTM standards for tensile testing of plastic films and polymer films. Our tensile strength testing machine is ideal for conducting tensile tests for plastic films, providing detailed tensile test dimensions and tensile test fixtures. With capabilities for film tensile tests, including ASTM thin film tensile tests and polymer film tensile testing, our lab ensures accurate tensile strength tests for plastic films, enhancing material performance and quality control. Bienvenue à votre consultation !
