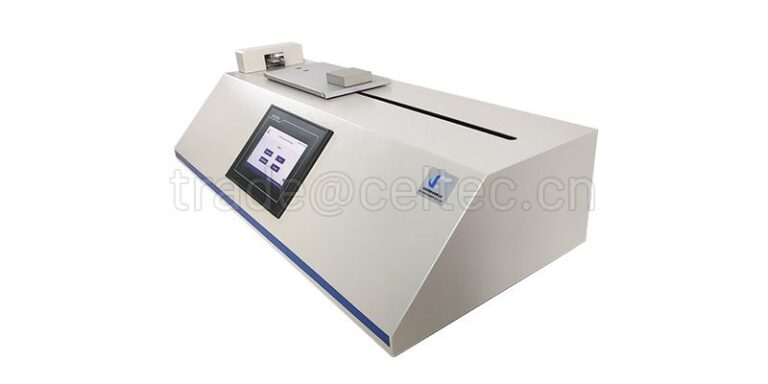

FPT-01 Friction and Peel Tester

Die FPT-01 Friction and Peel Tester is a versatile and multifunctional device designed to measure both static and kinetic coefficients of friction, and delicate peeling force tests. This cutting-edge instrument finds its applications across various industries, including plastics, paper, textiles, food, pharmaceuticals, and more.

Friction coefficient test: Applicable to the measurement of static and dynamic friction coefficients of various materials such as plastic films, sheets, rubber, paper, cardboard, PP woven bags, fabrics, composite materials, etc. This is essential for understanding the interaction between materials and their interaction with various surfaces.
Peel force test: Able to perform fine peel force tests on materials such as release paper, tape, medical adhesives, composite films, protective films, etc. This helps to evaluate the ease of separation between different material layers and ensure product quality and performance.

Working principle:
The equipment adopts a fixed load sensor position and is equipped with a protective cover. A movable plane is mounted on a precision ball screw, and the slider is placed on the sample and fixed on the plane, and then connected to the load sensor through a thin wire.
When performing the peel test, due to the small force, the right sample fixture is fixed to the plane with double-sided tape. Subsequently, a separation action is performed to peel off the sample, and the change in force is recorded during the process.

2.Advantages of FPT-01 Friction and Peel Tester

FPT-01 Friction and peel tester is a PLC-controlled unit with industrial-grade stability and operates through an intuitive HMI touch screen interface. The precision ball lead screw mechanism ensures consistent speed and displacement control.

The system offers two distinct testing methods: one for measuring the coefficient of friction (COF) and another for assessing peeling forces. In COF tests, precise free speed settings are available, while peeling tests consider parameters that influence peeling results, such as initial and tail portions.

Other features

1. Real-time data analysis and display, including results and graphical curves.

2. Compliance with various test standards.

3. Integration of a dot matrix micro printer.

4. Inclusion of an advanced peeling program.

5. Optional RS232 and software.

3.Why do you need FPT-01 Friction and Peel Tester

Die FPT-01 Friction and Peel Tester is a versatile and multifunctional device designed for various applications:

Measurement of Coefficient of Friction: It accurately measures both static and kinetic coefficients of friction for a wide range of materials, including plastic films, sheets, rubber, paper, paperboard, PP woven bags, fabrics, composites, and more. This capability is valuable for understanding how materials interact with each other and with various surfaces.

Delicate Peeling Force Test: The tester can perform delicate peeling force tests on materials such as release paper, adhesive tape, medical adhesives, composite films, and protective films. This feature is essential for assessing the ease of separation between different layers of materials, ensuring product quality and performance.

The FPT-01 Friction and Peel Tester is a versatile instrument that serves as a valuable tool for quality control, product development, and research in industries dealing with a wide range of materials, from packaging to medical applications.

4.Working Mechanism

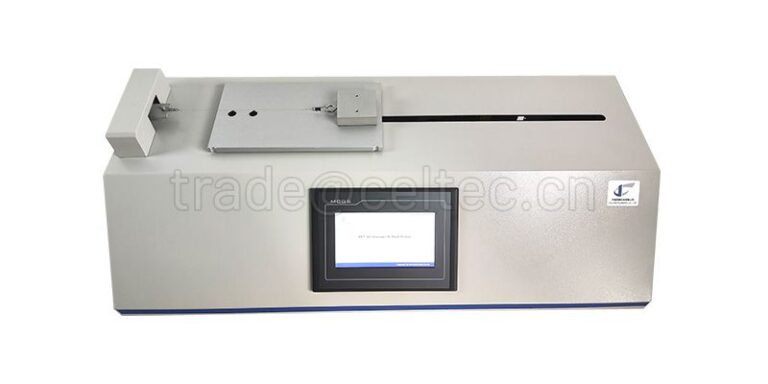

FPT-01 Friction and peel tester has a fixed loadcell position, with a protection cover. A movable plane is installed firmly to ball lead screw. The sled is to put on sample sticking to the plane, which is then connected to loadcell, with a filament.

When performing peeling test, as the force is small, the right sample clamp is stuck to plane, using double side type. Then a separation action is performed to peel the sample and force is recorded during the process.

5.Application

Coefficient of friction tests for Plastic Films and Sheets, Paper and Paperboard, Textiles, Non-woven Fabrics, and Woven Bags, Rubber Products, Aluminum Foils and Aluminum Foil Composite Films, Printing product, Wood and Flooring, photographic Films,

Peeling tests for adhesive tapes, Medical Adhesives, Protection Films, bank cards, etc.

6.Specifications

7.Standards

ISO 8295, ASTM D1894, TAPPI T816, ISO 8510-2, ASTM D4917, ASTM D3330, TAPPI T549

8.Configuration

a)Standard configuration: FPT-01 Friction and Peel Tester, Sled, filament, sample clamps, fuses, manual, calibration certificate, power cord.

b)Optional configuration: Custom jig, RS 232 Port, COM Line, Software, double-side tape.

9.FAQs

Q: What materials can be tested with the FPT-01 Friction and Peel Tester?

A: The FPT-01 is versatile and can test a wide range of materials, including plastic films, rubber, paper, textiles, PP woven bags, composite films, and more.

Q: How tests can FPT-01 Friction and Peel Tester perform?

A: FPT-01 Friction and Peel Tester can perform static and kinetic coefficient of friction, peeling test, etc.
