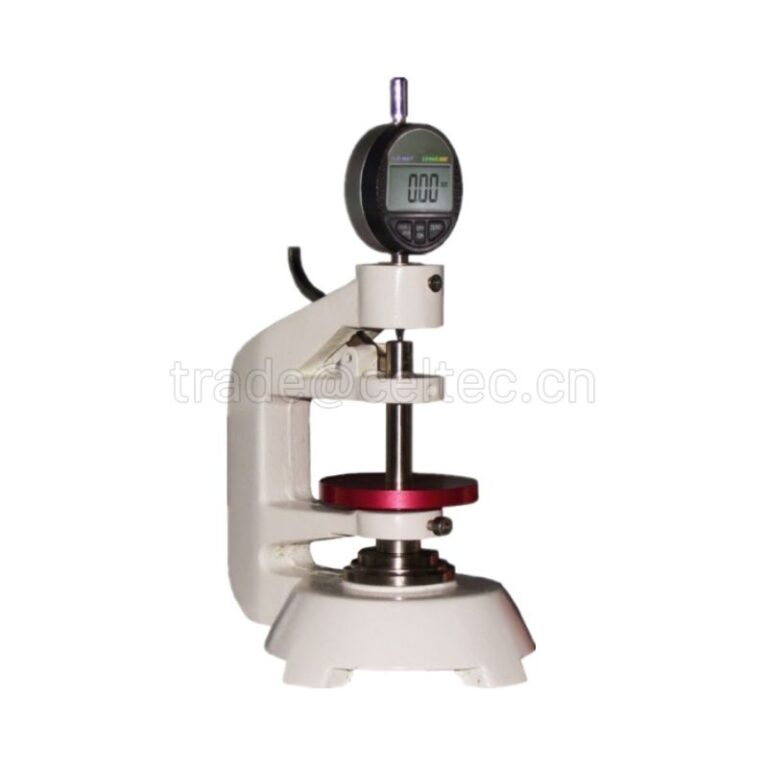

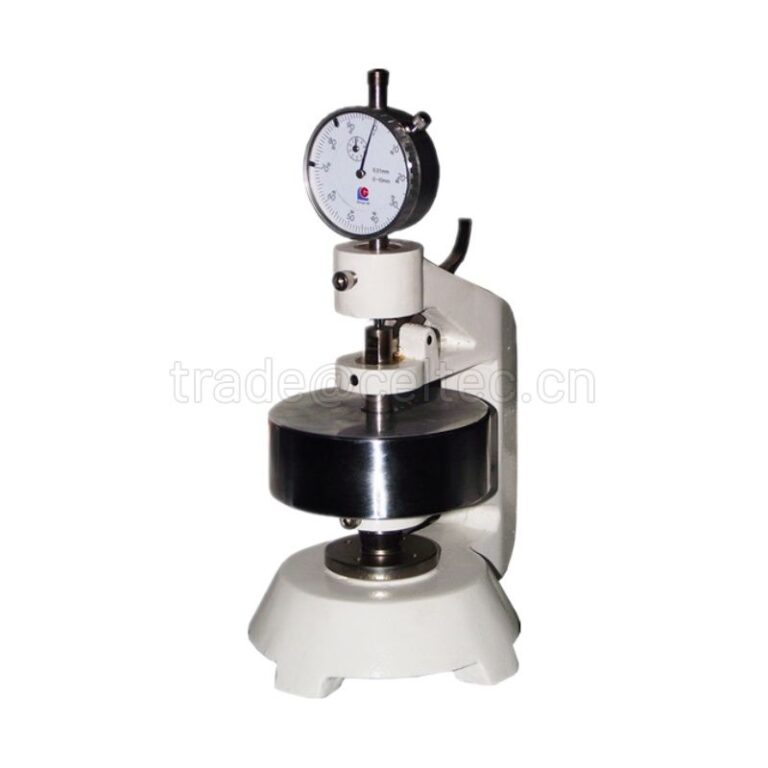

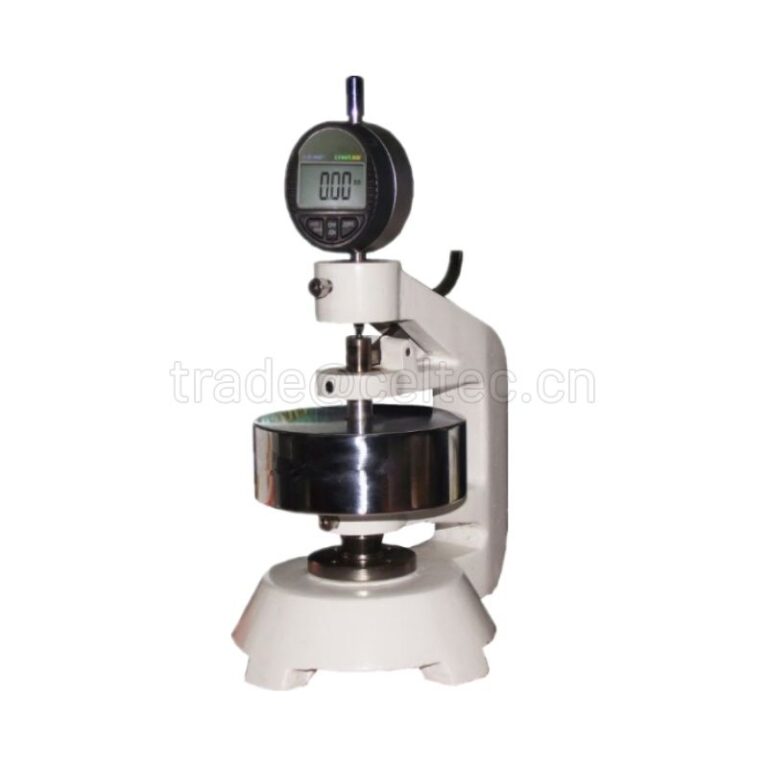

THD-01 Tissue جهاز اختبار السُمك is mainly used for thickness and bulking thickness test of tissue paper and its product under a pressure of 2KPa. It can complete the single-layer, sheet, and lamination thickness measurement. Other products like paper handkerchiefs, paper towels, napkins, kitchen roll paper are also its applications.
المبدأ
Measurement of the thickness of a test piece of tissue paper sampled during the manufacturing process or of a tissue product supplied as a finished article. The measurement being made as the distance between a fixed reference plate on which the sample rests and a parallel pressure-foot that exerts a 2KPa load on the area under test.
الوصف
THD-01 جهاز اختبار سُمك الأنسجة has two parallel, horizontal faces, flat to within 0.003 mm, between which the test piece is placed The lower face shall be fixed and the upper face (pressure-foot) moveable in a direction perpendicular to the plane of the fixed face.
The upper, circular, pressure-foot shall have a diameter of (35.7 ± 0.1) mm giving a nominal area of 10.0 cm2 and shall be parallel to the lower face within limits.
The lower face is constructed to support the test piece such that the test piece lies flat while undertest. The pressure between the two faces shall be (2.0 ± 0.1) KPa. The measuring speed shall be (2.0±0.2) mm/s.
البيانات الفنية
| نطاق الاختبار | 0 ～ 4 مم |
| القرار | 0.001 مم |
| منطقة الاتصال | 1000±20 mm² |
| ضغط الاتصال | 2±0.1 kPa |
| Surface parallelism | ≤0.001mm |
| Indication error | ±0.05％ |
الأسئلة الشائعة
What is single-ply thickness?
The distance between the two principal surfaces of a single ply of tissue paper measured under the applied static load of 2Kpa.
A ‘ply’ of tissue is an unlaminated tissue, like that made directly from a tissue machine.
What is single sheet thickness?
The distance between the two principal surfaces of a single sheet of tissue product measured under the applied static load of 2Kpa.
A ‘sheet’ of tissue is a laminated or unlaminated tissue like that present in the finished tissue product.
What is bulking thickness?
The thickness of a single sheet of tissue paper or tissue product, calculated from the thickness of several superimposed sheets, measured under the applied static load of 2Kpa.
